threadFunction=function()
    -- put your actuation code here
 while sim.getSimulationState()~=sim.simulation_advancing_abouttostop do
    -- Read the keyboard messages (make sure the focus is on the main window, scene view):
        message,auxiliaryData=sim.getSimulatorMessage()
        while message~=-1 do
            if (message==sim.message_keypress) then
if (auxiliaryData[1]==2007) then
                -- up key
                velocity=1000
                torque=10000
                Shape4 = 1000
                Shape7 = 1000
            end
            if (auxiliaryData[1]==2008) then
                -- down key
                velocity=1000
                torque=10000
                Shape4 = 1000
                Shape7 = 1000
            end
            if (auxiliaryData[1]==2009) then
                -- left key
                velocity=1000
                torque=10000
                Shape4 = 1000
                Shape7 = 1000
            end
            if (auxiliaryData[1]==2010) then
                -- right key
                velocity=1000
                torque=10000
                Shape4 = 1000
                Shape7 = 1000
            end
        end
        message,auxiliaryData=sim.getSimulatorMessage()
    end
    if Shape4 == 1
        then sim.setJointPosition(joint_1, 1000, orientation)
    if Shape7 == 1
        then sim.setJointPosition(joint_2, 1000, orientation)
    end
        sim.setJointTargetVelocity(joint,velocity)
    end
        joint_1=sim.getObjectHandle('joint_1')
        joint_2=sim.getObjectHandle('joint_2')
        Shape4=sim.getObjectHandle('Shape4')
        Shape7=sim.getObjectHandle('Shape7')
        velocity=0
        torque=0
        Shape4 = 0
        Shape7 = 0
end

因部分語法有誤，日後待除錯。

經過一週的時間，我們將程式進行了修改，但還是有錯誤，無法讓機構以上下左右鍵的方式進行控制。

下方為模擬圖:

第二次Lua程式測試:

function sysCall_init()
    -- do some initialization here
    left_front_handle= sim.getObjectHandle('left_front')
    left_back_handle= sim.getObjectHandle('left_back')
    right_back_handle= sim.getObjectHandle('right_back')
    right_front_handle= sim.getObjectHandle('right_front')

    joint_1_handle= sim.getObjectHandle('joint_1')

    joint_2_handle= sim.getObjectHandle('joint_2')
    MaxVel=10
    leftvelocity=0
    rightvelocity=0
    dVel=0.5;
    --sim.setJointTargetVelocity(left_front_handle,leftvelocity)
    sim.setJointTargetVelocity(left_back_handle,leftvelocity)
    sim.setJointTargetVelocity(right_back_handle,rightvelocity)
    --sim.setJointTargetVelocity(right_front_handle,rightvelocity)
end

function sysCall_actuation()
    -- put your actuation code here
    message,auxiliaryData=sim.getSimulatorMessage()
    while message~=-1 do
        if (message==sim.message_keypress) then
            if (auxiliaryData[1]==32) then
                -- right key
                leftvelocity=0
                rightvelocity=0
                sim.setJointForce(left_front_handle, 0)
                sim.setJointForce(left_back_handle, 0)
                sim.setJointForce(right_back_handle, 0)
                sim.setJointForce(right_front_handle, 0)


                sim.setJointForce(joint_1_handle, 1000)

                sim.setJointForce(joint_2_handle, 1000)
                break
            else
            --sim.setJointForce(left_front_handle, 10000)
            sim.setJointForce(left_back_handle, 10000)
            sim.setJointForce(right_back_handle, 10000)
            --sim.setJointForce(right_front_handle, 10000)

            sim.setJointForce(joint_1_handle, 0)

            sim.setJointForce(joint_2_handle, 0)
            end
            if (auxiliaryData[1]==2007) then
                -- up key
                leftvelocity=(leftvelocity+rightvelocity)/2
                rightvelocity=leftvelocity
                leftvelocity=leftvelocity+dVel
                rightvelocity=rightvelocity+dVel
            end
            if (auxiliaryData[1]==2008) then
                -- down key
                leftvelocity=(leftvelocity+rightvelocity)/2
                rightvelocity=leftvelocity
                leftvelocity=leftvelocity-dVel
                rightvelocity=rightvelocity-dVel
            end
            if (auxiliaryData[1]==2009) then
                -- left key
                leftvelocity=leftvelocity-dVel
                rightvelocity=rightvelocity+dVel
            end
            if (auxiliaryData[1]==2010) then
                -- right key
                leftvelocity=leftvelocity+dVel
                rightvelocity=rightvelocity-dVel
            end
        end
        message,auxiliaryData=sim.getSimulatorMessage()
    end

    if leftvelocity>MaxVel then
        leftvelocity=MaxVel
    end
    if leftvelocity<-MaxVel then
        leftvelocity=-MaxVel
    end

    if rightvelocity>MaxVel then
                rightvelocity=MaxVel
    end
    if rightvelocity<-MaxVel then
                rightvelocity=-MaxVel
    end

    --sim.setJointTargetVelocity(left_front_handle,leftvelocity)
    sim.setJointTargetVelocity(left_back_handle,leftvelocity)
    sim.setJointTargetVelocity(right_back_handle,rightvelocity)
    --sim.setJointTargetVelocity(right_front_handle,rightvelocity)

end

function sysCall_sensing()
    -- put your sensing code here
end

function sysCall_cleanup()
    -- do some clean-up here
end

-- See the user manual or the available code snippets for additional callback functions and details

第二次程式失敗，日後將持續進除錯。

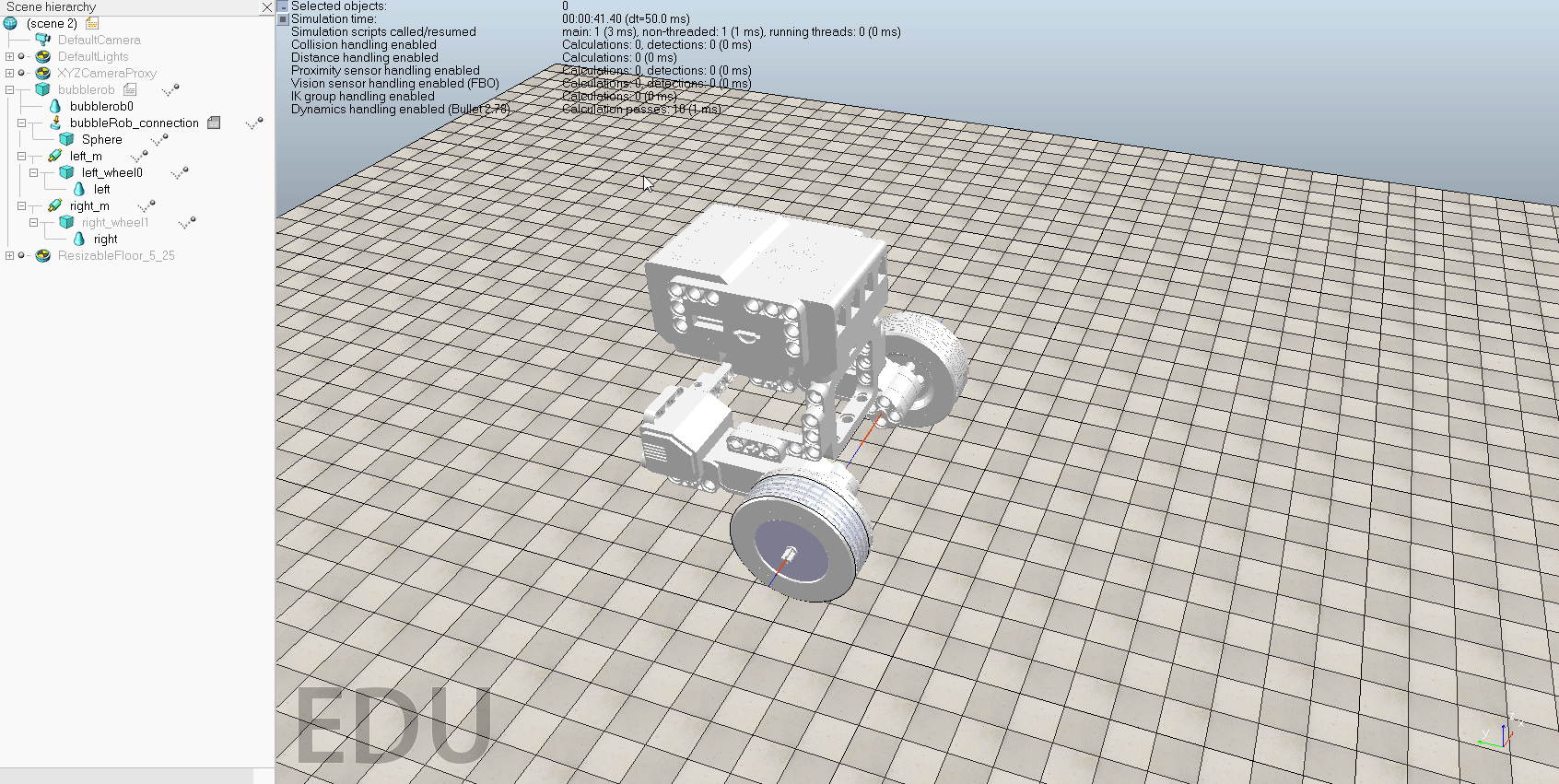

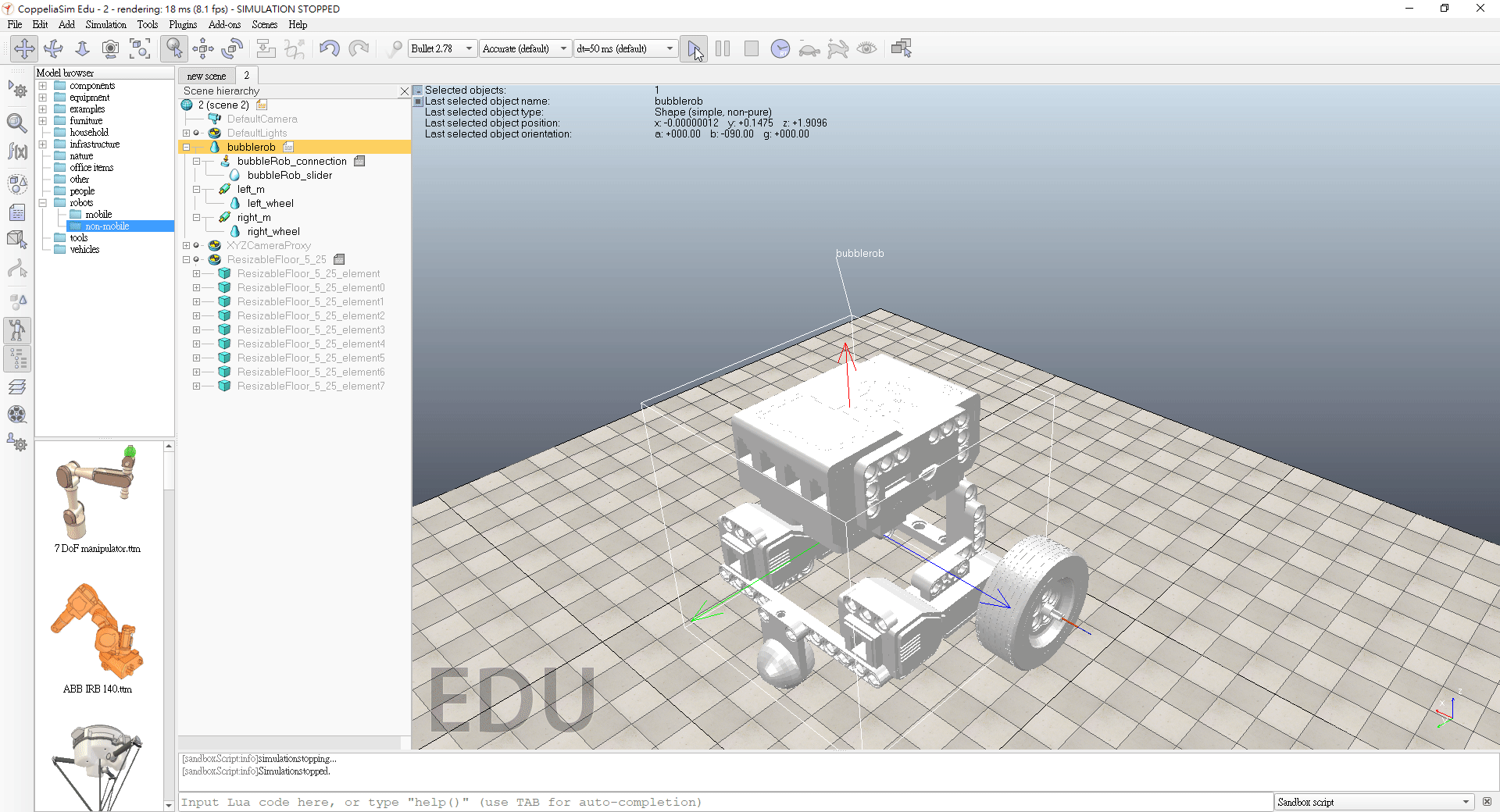

利用鍵盤操控物體行走

(🔽程式碼)

function sysCall_init()
    left_handle= sim.getObjectHandle('left_m')
    right_handle= sim.getObjectHandle('right_m')
    MaxVel=2
    leftvelocity=0
    rightvelocity=0
    dVel=0.5;
    sim.setJointTargetVelocity(left_handle,leftvelocity)
    sim.setJointTargetVelocity(right_handle,rightvelocity)
end

function sysCall_actuation()
    message,auxiliaryData=sim.getSimulatorMessage()
    while message~=-1 do
        if (message==sim.message_keypress) then
            if (auxiliaryData[1]==32) then
                -- right key
                leftvelocity=0
                rightvelocity=0
                sim.setJointForce(left_front_handle, 0)
                sim.setJointForce(right_front_handle, 0)
                break
            else
                sim.setJointForce(left_handle, 10000)
                sim.setJointForce(right_handle, 10000)
            end
            if (auxiliaryData[1]==2007) then
                -- up key
                leftvelocity=(leftvelocity+rightvelocity)/2
                rightvelocity=leftvelocity
                leftvelocity=leftvelocity+dVel
                rightvelocity=rightvelocity+dVel
            end
            if (auxiliaryData[1]==2008) then
                -- down key
                leftvelocity=(leftvelocity+rightvelocity)/2
                rightvelocity=leftvelocity
                leftvelocity=leftvelocity-dVel
                rightvelocity=rightvelocity-dVel
            end
            if (auxiliaryData[1]==2009) then
                -- left key
                leftvelocity=leftvelocity-dVel
                rightvelocity=rightvelocity+dVel
            end
            if (auxiliaryData[1]==2010) then
                -- right key
                leftvelocity=leftvelocity+dVel
                rightvelocity=rightvelocity-dVel
            end
        end
        message,auxiliaryData=sim.getSimulatorMessage()
    end

    if leftvelocity>MaxVel then
        leftvelocity=MaxVel
    end
    if leftvelocity<-MaxVel then
        leftvelocity=-MaxVel
    end

    if rightvelocity>MaxVel then
                rightvelocity=MaxVel
    end
    if rightvelocity<-MaxVel then
                rightvelocity=-MaxVel
    end

    sim.setJointTargetVelocity(left_handle,leftvelocity)
    sim.setJointTargetVelocity(right_handle,rightvelocity)

end

模擬問題與排解

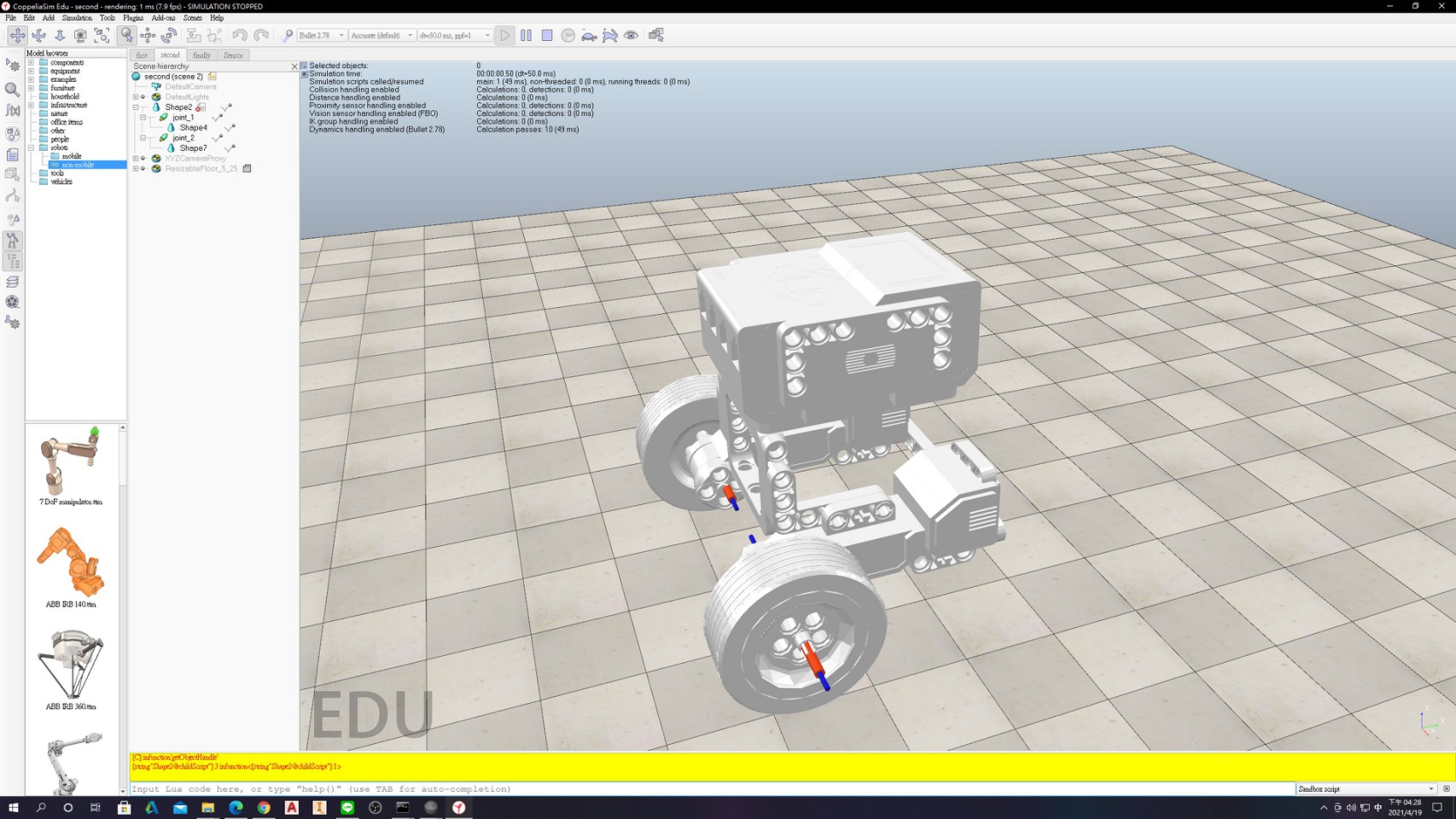

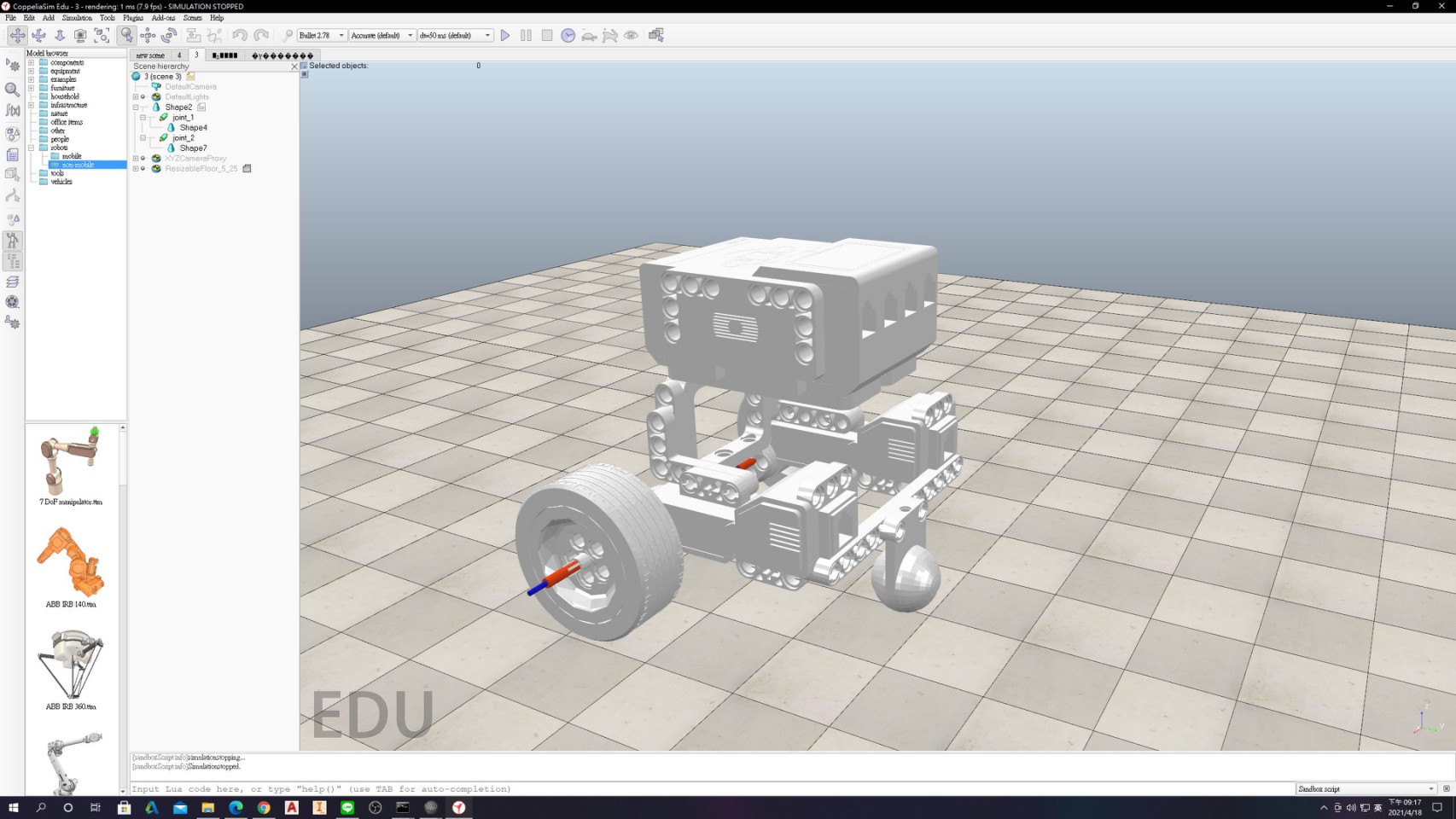

問題: 當本體開啟運動模擬時會產生錯誤，導致產品解體

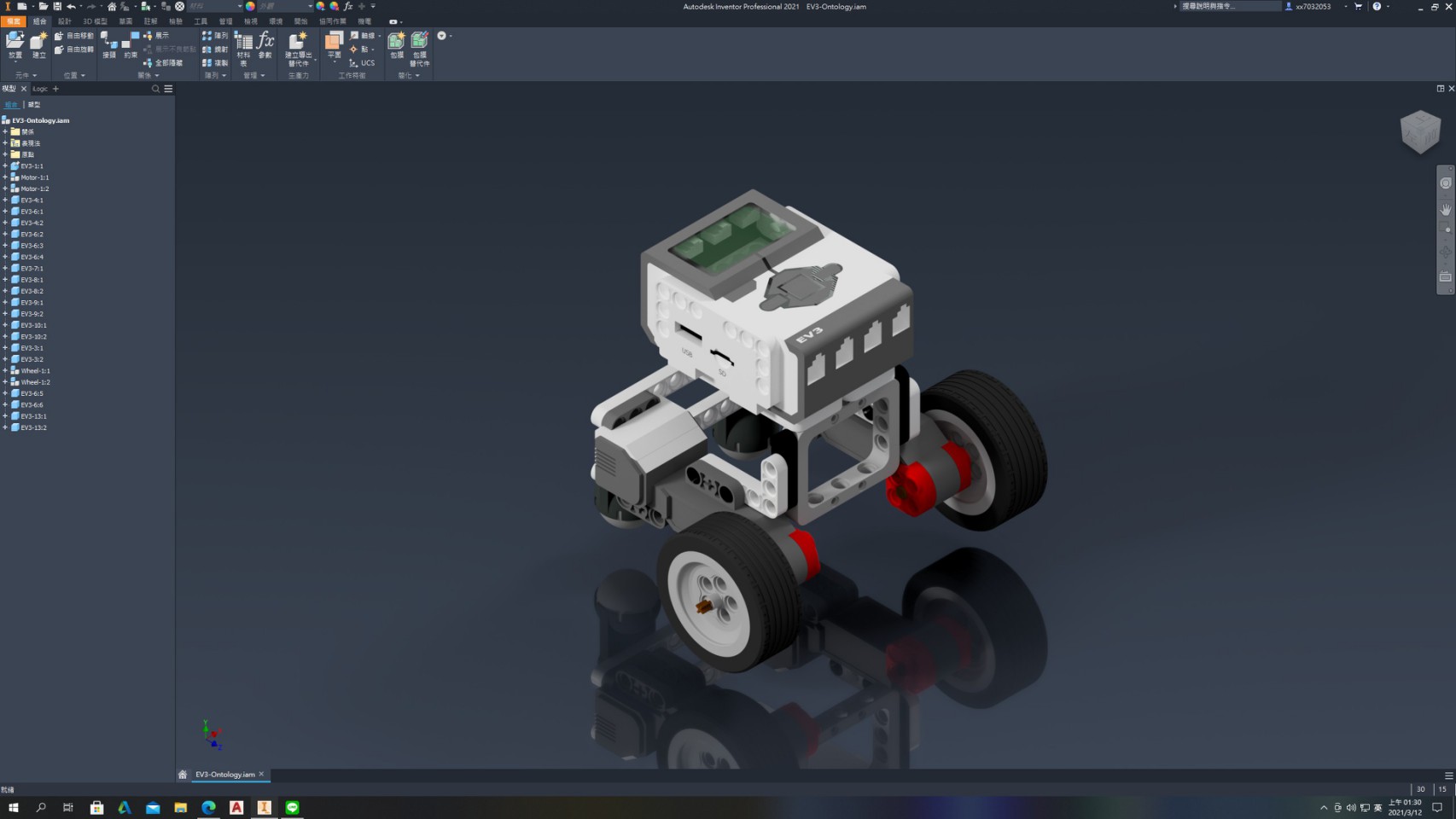

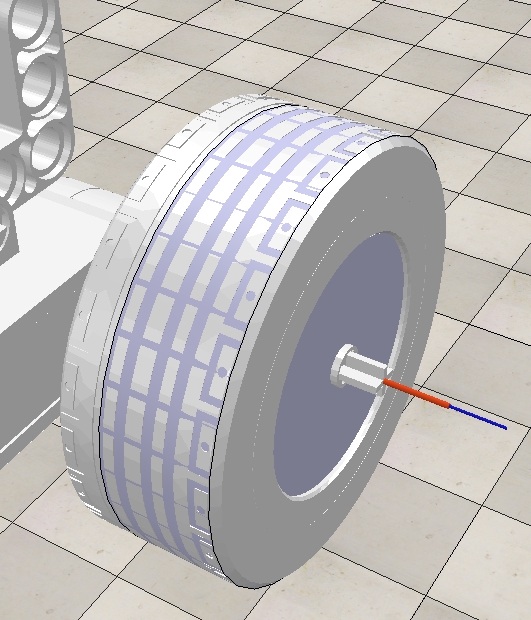

問題原因: 討論後發現，產品的模擬干涉太多使其無法正常運作，原因是產品的輪子跟球體上並不是完整的圓，而是由許多正方形的小格子所構成，所以在模擬時產生過多的干涉影響電腦正常模擬，因而模擬錯誤。

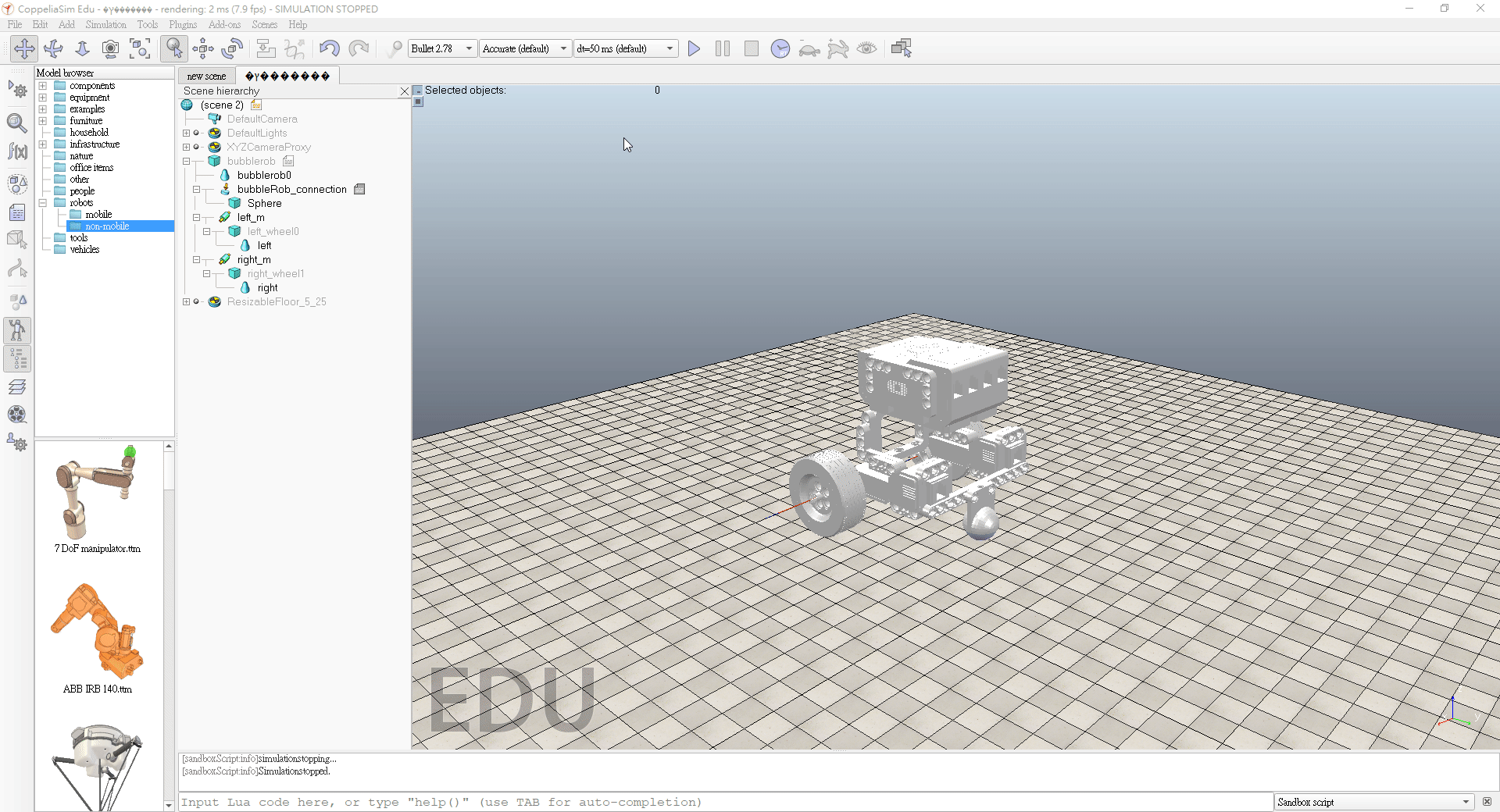

問題排解: 在coppeliasim內 add->primitive shape->Cylinder 增添簡化圖形來代替原本的車輪，而原本的輪子就做為Disc的造型。

W8 Sensor Control

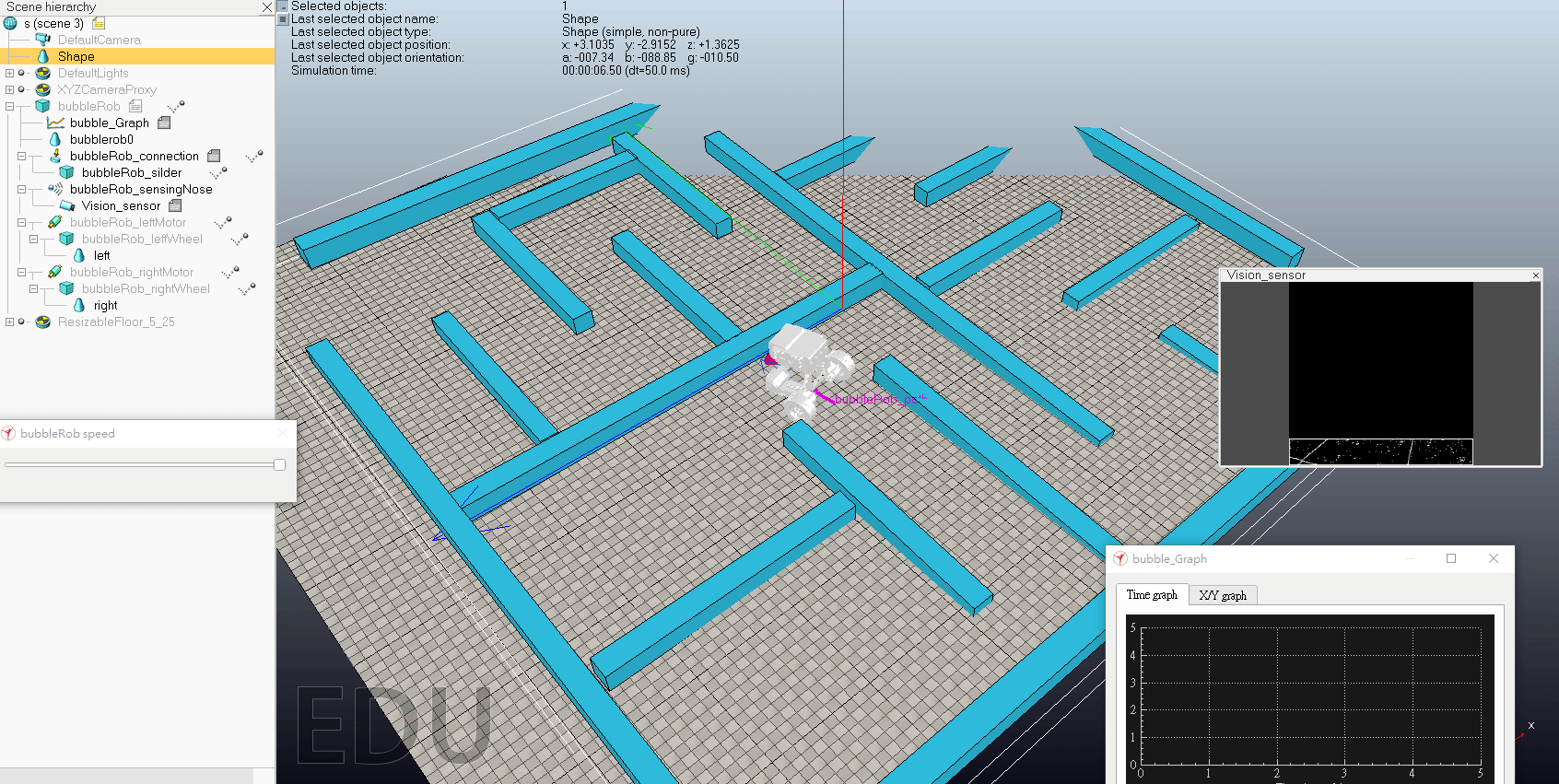

增加接近傳感器使產品自動行走時，不會撞到障礙物

(🔽程式碼)

function sysCall_init()


end

function sysCall_actuation()

end

function sysCall_sensing()

end

function sysCall_cleanup()

end



function sysCall_afterDelete(inData)
    for key,value in pairs(inData.objectHandles) do
        print("Object with handle "..key.." was deleted")
    end

end

function sysCall_afterCreate(inData)
    for key,value in pairs(inData.objectHandles) do
        print("Object with handle "..value.." was created")
    end
end
--]]
function speedChange_callback(ui,id,newVal)
    speed=minMaxSpeed[1]+(minMaxSpeed[2]-minMaxSpeed[1])*newVal/100
end

function sysCall_init()

    bubbleRobBase=sim.getObjectAssociatedWithScript(sim.handle_self)
    leftMotor=sim.getObjectHandle("bubbleRob_leftMotor")
    rightMotor=sim.getObjectHandle("bubbleRob_rightMotor")
    noseSensor=sim.getObjectHandle("bubbleRob_sensingNose")
    minMaxSpeed={120*math.pi/180,300*math.pi/180}
    backUntilTime=-1

        xml = ''..[[



        ]]
    ui=simUI.create(xml)
    speed=(minMaxSpeed[1]+minMaxSpeed[2])*1
    simUI.setSliderValue(ui,1,100*(speed-minMaxSpeed[1])/(minMaxSpeed[2]-minMaxSpeed[1]))
end

function sysCall_actuation()
    result=sim.readProximitySensor(noseSensor)

    if (result>0) then backUntilTime=sim.getSimulationTime()+4 end

    if (backUntilTime<sim.getSimulationTime()) then

        sim.setJointTargetVelocity(leftMotor,speed)
        sim.setJointTargetVelocity(rightMotor,speed)
    else

        sim.setJointTargetVelocity(leftMotor,-speed/5)
        sim.setJointTargetVelocity(rightMotor,-speed/200)
    end
end

function sysCall_cleanup()
	simUI.destroy(ui)
end

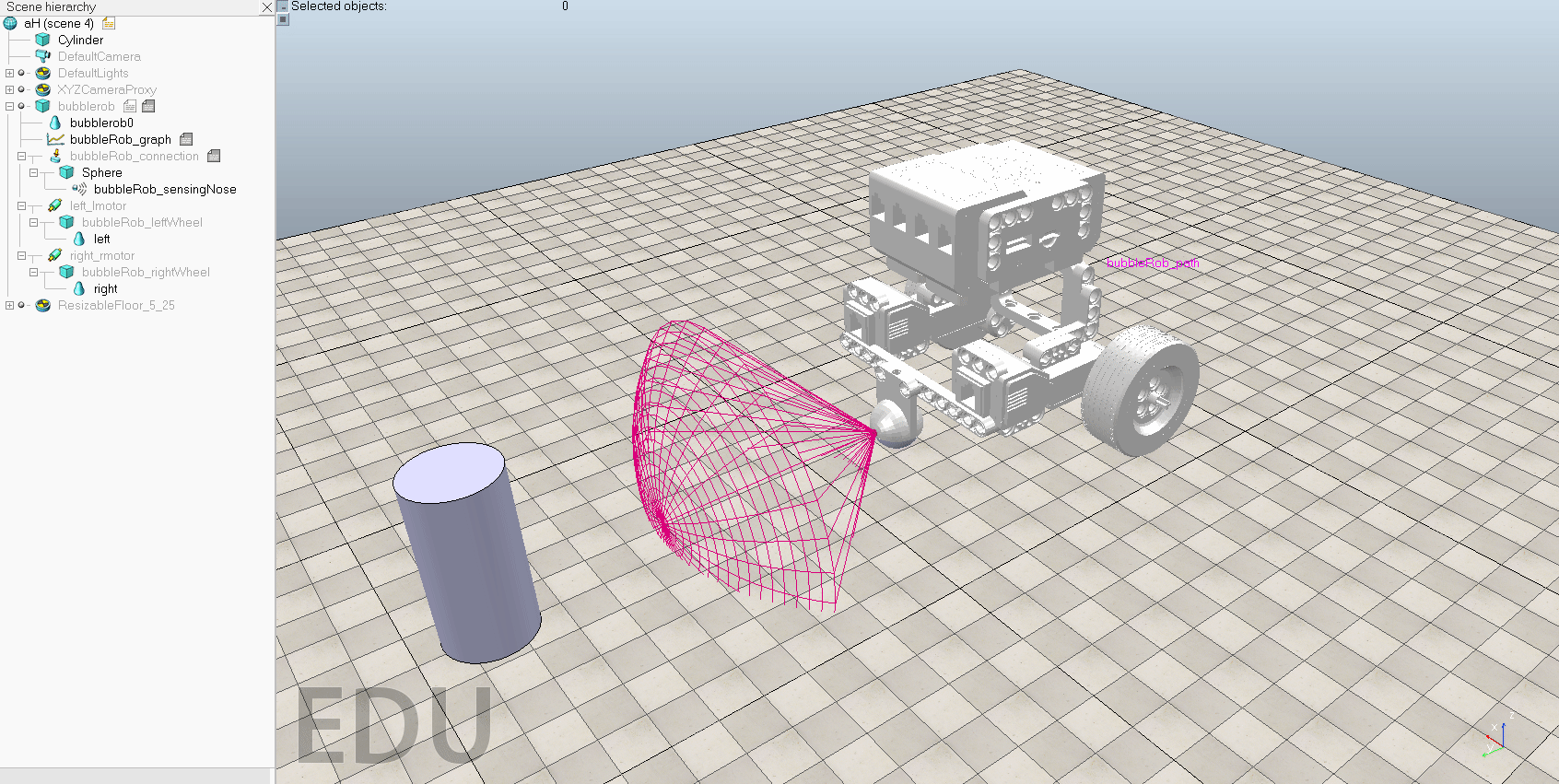

Sensor模擬問題與排解

問題:程式與感測器都確認無誤後，卻還是無法做動。

問題原因:與組員討論後發現，感測器都沒有發生問題，不會做動的原因是程式打錯才無法驅動馬達。

問題排解:更改產品物件的程式碼即可。

程式模擬影片與PDF報告

方向鍵控制模擬

感測器模擬

PDF報告

Stage1-ag1 << Previous Next >> stage3-ag1
